Belt Cleaner

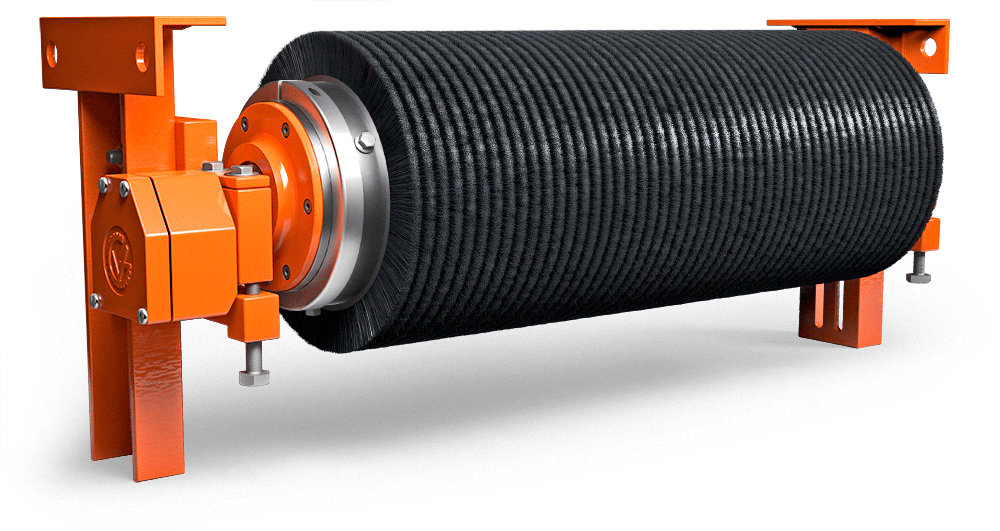

An innovative solution for removing residual materials from conveyor belts including belts with cleats, lacing, and repair patches. The VDG Belt Cleaner cleans the belt without wearing or damaging the belt as experienced with typical belt scrapers. The VDG Belt Cleaner features a 10-inch diameter replaceable spiral brush that is powered by a 1HP VDG Drum Motor, designed to operate in the harshest conditions.

The robust, maintenance-free VDG Belt Cleaner effectively removes excessive carryback of wet and dry fines clinging to the belt with various profiles including cleats and sidewalls, with no wear or damage to the belt, increasing the life of the belt and reducing operating costs. Available from 24-inch to 72-inch standard CEMA belt widths and includes adjustable mounting brackets for easy installation under the conveyor belt.

BENEFITS

Completely sealed drum motor with easily replaceable spiral brush
Removes excessive carry back with no belt wear
Ideal for use on chevron or cleated belts
Maintenance-free drum motor up to 80,000 hours
Excels in the most challenging environments

  Van der Graaf Belt Cleaner

Specifications*

Belt Width (inches) Brush Width (inches) Bracket Centers (inches) Motor (HP) Speed Range (fpm)
24 26 33.5 1.0 164 - 630
30 32 39.4 1.0 164 - 630
36 38 45.3 1.0 164 - 630
42 44 51.2 1.0 164 - 630
48 50 57.1 1.0 236 - 614
54 56 63.0 1.0 236 - 614
60 62 68.9 1.0 236 - 614
72 74 82.7 1.0 236 - 614
*Click here for detailed specifications.
